QMI Atmospheric Oil Mist Detection System
Safety is one of the highest priorities in modern marine operations. The QMI Atmospheric Oil Mist Detector (AOMD) is designed to continuously monitor airborne oil mist concentrations in engine rooms and machinery spaces, providing early warning of hazardous conditions before they develop into serious fire or explosion risks.
Swift Marine Tech Services Pte Ltd specializes in the supply, installation, commissioning, calibration, troubleshooting, repair, retrofit, and maintenance of QMI Atmospheric Oil Mist Detection Systems for commercial vessels, offshore platforms, and industrial marine applications worldwide.
QMI Atmospheric Oil Mist Detector – Reliable Protection for Marine Machinery Spaces

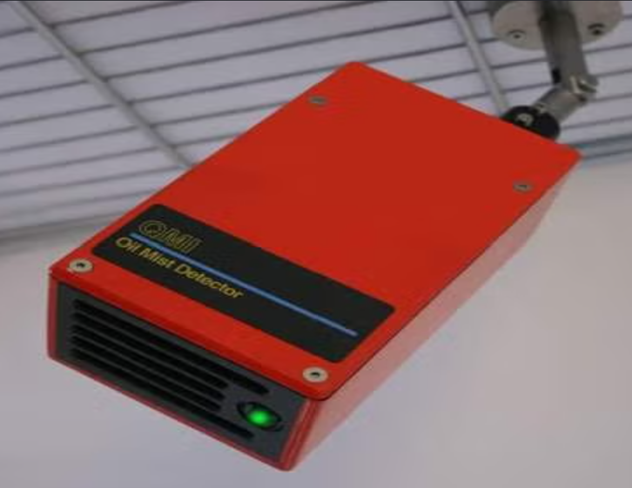

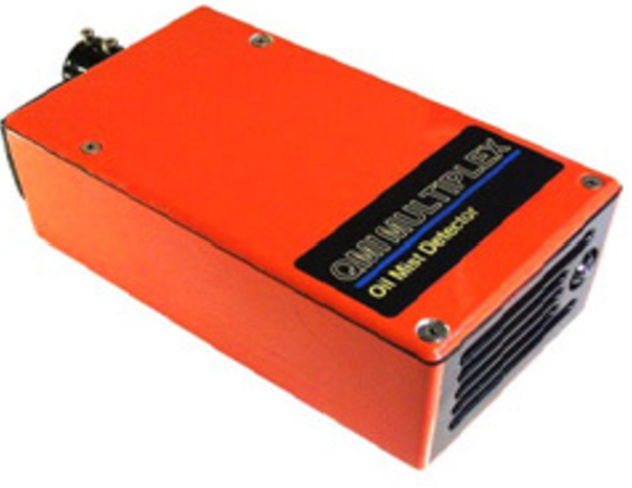

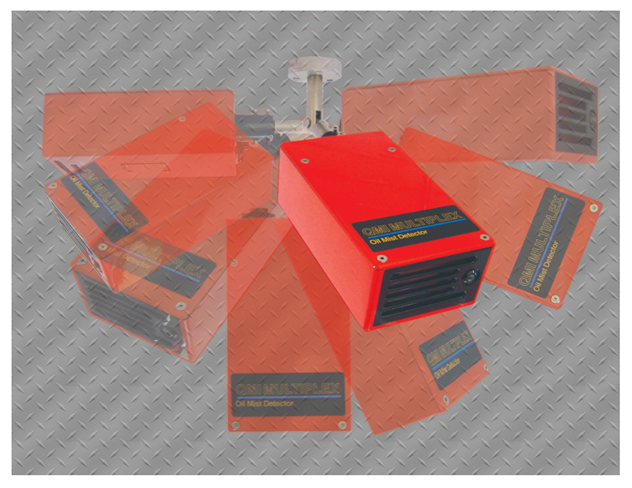

The QMI Atmospheric Oil Mist Detector is an advanced marine safety monitoring system that continuously samples air from machinery spaces to detect suspended oil mist particles. By providing real-time monitoring and immediate alarms, the system enables engineers to identify oil leaks, overheating equipment, or abnormal operating conditions before they become critical.
Unlike crankcase oil mist detectors, the Atmospheric Oil Mist Detector is specifically designed to monitor the surrounding engine room atmosphere, improving onboard safety and supporting compliance with international marine safety standards.
How the QMI Atmospheric Oil Mist Detector Works
The detector continuously draws air through strategically located sampling points using an integrated sampling system. The sampled air passes through a precision optical sensing chamber where advanced light-scattering technology measures oil mist concentration.
If the oil mist level exceeds the programmed alarm threshold, the control unit instantly activates visual and audible alarms while sending alarm signals to the vessel’s automation system. This allows the engineering crew to respond immediately, identify the source of contamination, and restore safe operating conditions.
Key Features
- Continuous atmospheric oil mist monitoring
Continuously samples the surrounding air to detect oil mist accumulation in real time. - High-sensitivity optical detection technology
Uses advanced optical sensing to identify even low concentrations of oil mist accurately. - Fast response to hazardous oil mist levels
Detects rising oil mist conditions quickly so the crew can take immediate action. - Automatic warning and high-level alarms
Provides clear visual and audible alarms when oil mist levels exceed safe limits. - Self-diagnostic monitoring system
Continuously checks system health and alerts operators to faults or abnormal conditions. - Marine-grade robust construction
Built to withstand vibration, humidity, and harsh operating conditions in marine environments. - Low maintenance requirements
Designed for dependable operation with minimal routine servicing. - Easy integration with ship automation systems
Connects smoothly with vessel monitoring and alarm systems for centralized control. - Reliable 24/7 operation
Delivers continuous protection around the clock without interruption. - Long service life in demanding marine environments
Engineered for durability and consistent performance over extended periods of use.
Key Benefits
The QMI Atmospheric Oil Mist Detector offers several important benefits for vessel operators, engineers, and shipowners:
- Early detection of hazardous oil mist conditions
Identifies abnormal oil mist levels before they develop into fire or explosion risks. - Improved engine room safety
Helps protect crew, machinery, and surrounding equipment from dangerous atmospheric contamination. - Reduced risk of unplanned downtime
Allows operators to detect leaks or faults early and prevent major machinery failures. - Enhanced preventive maintenance
Supports proactive maintenance by revealing abnormal operating conditions at an early stage. - Reliable continuous monitoring
Provides 24/7 surveillance of machinery space atmosphere for consistent protection. - Fast alarm response
Activates immediate visual and audible warnings when oil mist levels exceed safe limits. - Better compliance support
Assists vessel operators in meeting marine safety and inspection requirements. - Easy integration with ship systems
Connects with automation, alarm, and monitoring systems for centralized control. - Lower maintenance and operating costs
Helps reduce repair expenses by preventing severe equipment damage and emergency breakdowns. - Long-term operational reliability
Designed for harsh marine environments with durable performance and minimal servicing needs.
Key Components
The QMI Atmospheric Oil Mist Detector system typically consists of the following key components:
- Sampling Unit / Air Intake Manifold
Collects ambient air from the monitored machinery space and directs it into the detection system. - Sampling Lines / Air Tubes
Transport air samples from multiple monitoring points to the detector for continuous analysis. - Optical Sensing Chamber
Uses light-scattering or infrared detection technology to measure oil mist concentration accurately. - Sampling Pump
Draws air through the system at a controlled flow rate to ensure reliable and consistent monitoring. - Control Unit / Main Processor

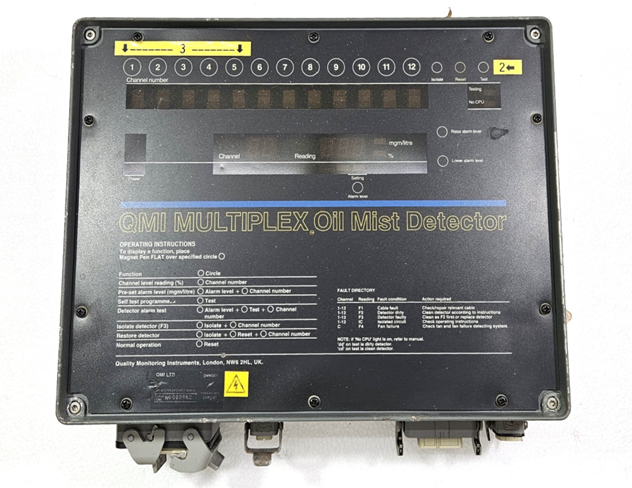

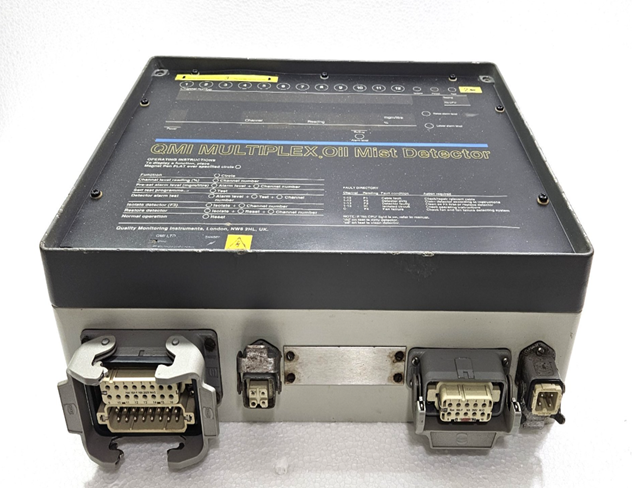

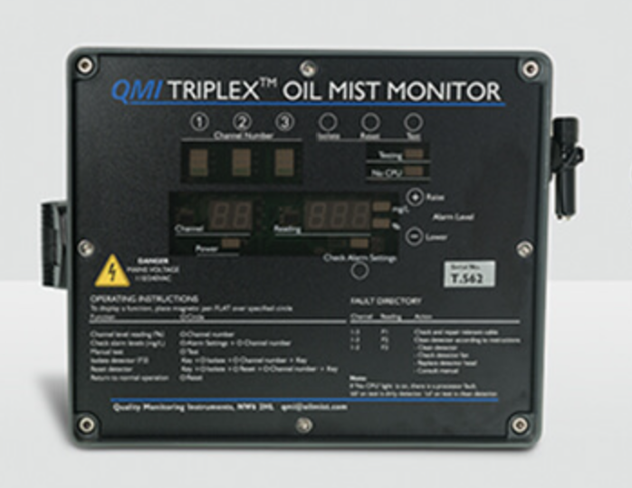

Processes sensor data, evaluates alarm conditions, and manages system operation. - Display Panel / Indicator Module
Provides real-time status information, alarm indications, and fault notifications to operators. - Alarm Output Relays
Transmit warning and fault signals to the vessel’s alarm and automation systems. - Power Supply Module
Supplies stable operating power to the detector and its associated components. - Self-Diagnostic Circuit
Continuously monitors system performance and detects faults such as pump failure, sensor error, or sampling blockage. - Communication Interface
Enables integration with ship monitoring systems, PLCs, and centralized alarm panels. - Alarm Horn / Visual Beacon

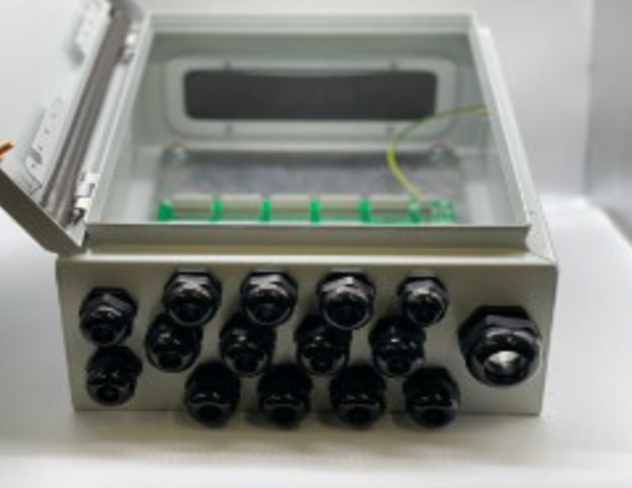

Provides immediate audible and visual alerts when oil mist levels exceed safe limits. - Mounting and Enclosure Assembly
Protects internal components and ensures secure installation in marine environments.
International Compliance and Certification
The QMI Atmospheric Oil Mist Detector is designed to support international marine safety compliance and can be integrated into vessels operating under major flag-state and classification society requirements. Swift Marine Tech Services Pte Ltd provides technical support, documentation, testing, and certification assistance to help ensure the system meets applicable marine standards and vessel-specific regulations.
- Support for IMO and SOLAS-related marine safety requirements
- Compliance assistance for classification society standards such as DNV, ABS, LR, BV, ClassNK, RINA, and other major class approvals, subject to vessel specification
- Support for IEC and ISO electrical and instrumentation standards where applicable
- Documentation for factory testing, calibration, commissioning, and functional verification
- Onboard inspection and survey support for class and flag-state audits
- Retrofit compliance checks for upgraded or replacement oil mist detection systems
- Service reports and calibration certificates for maintenance records and vessel documentation
QMI Atmospheric Oil Mist Detector – Advanced Safety for Marine Machinery Spaces
Why Choose Swift Marine Tech Services Pte Ltd?
Swift Marine Tech Services Pte Ltd is a trusted marine engineering company providing professional marine automation, engine monitoring, and safety system solutions for shipowners, ship management companies, and offshore operators worldwide.
Our commitment includes:
- Experienced marine service engineers
- Fast worldwide onboard attendance
- High-quality technical support
- Certified calibration services
- Genuine spare parts
- Competitive pricing
- Reliable after-sales support
- Customized retrofit solutions
Whether you require installation, calibration, troubleshooting, or emergency repairs for your QMI Atmospheric Oil Mist Detector, Swift Marine Tech Services Pte Ltd is your reliable partner for complete marine safety and automation solutions.
Swift Marine Tech Services Pte Ltd – Our Services
Swift Marine Tech Services Pte Ltd provides complete technical support for QMI Atmospheric Oil Mist Detection Systems, including:
- Supply of QMI Oil Mist Detection Systems
- Installation and commissioning
- Annual calibration services
- Preventive maintenance
- Emergency troubleshooting
- Fault diagnosis and repairs
- Spare parts supply
- System inspection
- Retrofit and modernization
- Marine automation integration
- PLC interface support
- Worldwide onboard service
Our experienced marine automation engineers deliver dependable solutions that maximize equipment reliability, minimize downtime, and ensure the safe operation of marine engine rooms.
Contact Swift Marine Tech Services Pte Ltd
For enquiries, quotations, technical support, or emergency onboard service for your QMI Atmospheric Oil Mist Detector, please contact Swift Marine Tech Services Pte Ltd today. Our team is ready to assist with installation, commissioning, calibration, troubleshooting, maintenance, retrofit solutions, and spare parts support for marine and offshore applications worldwide.
Whether you need urgent repair assistance or planned preventive maintenance, Swift Marine Tech Services Pte Ltd provides fast, reliable, and professional marine technical support to keep your vessel operating safely and efficiently.
