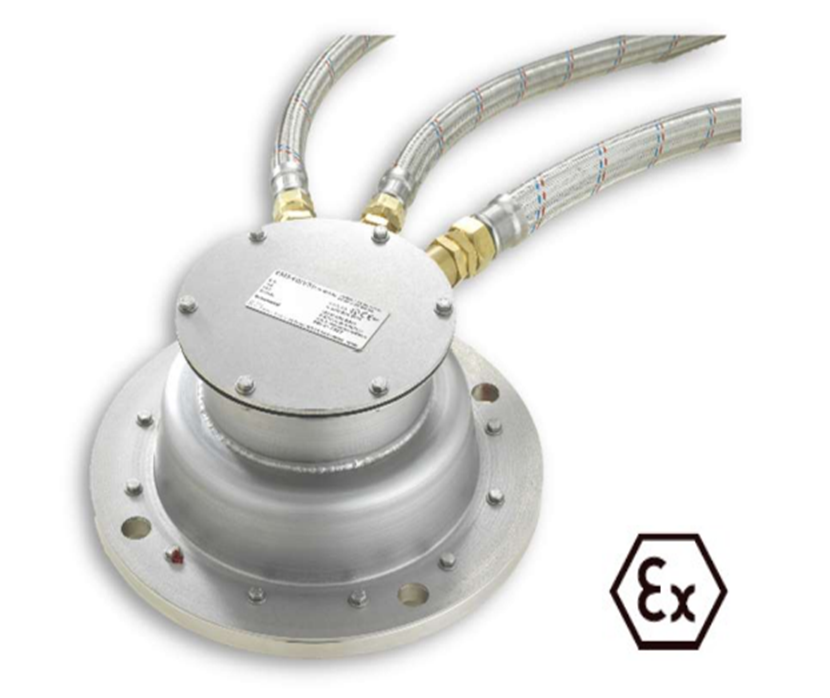

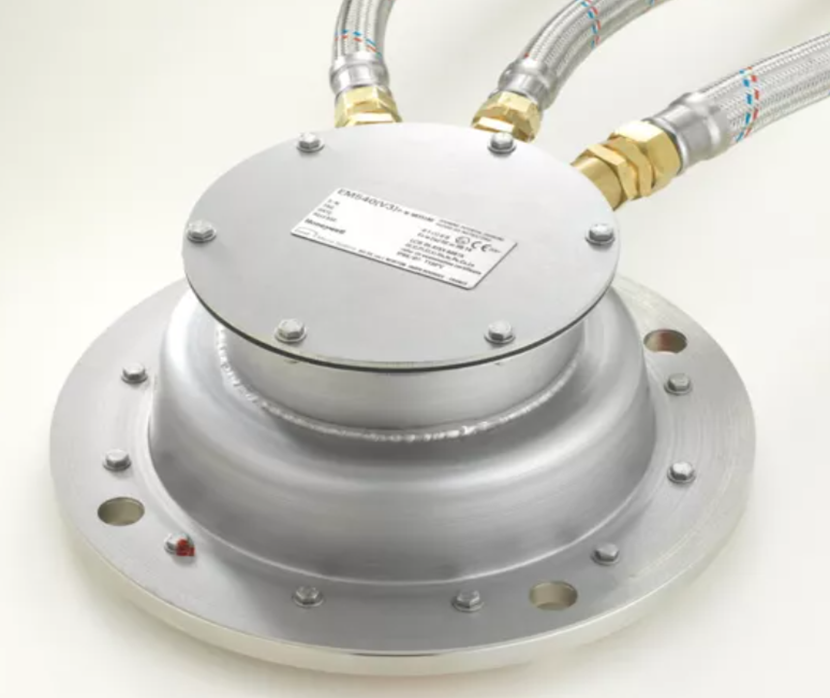

Honeywell EM540 Tank Radar
The Honeywell EM540 Radar Type Level Gauge is an advanced marine-approved radar level measurement system engineered for accurate and reliable free-space cargo tank level monitoring onboard oil tankers, chemical tankers, offshore vessels, and marine storage facilities. Designed using intelligent 10GHz FMCW radar technology, the EM540 provides highly precise non-contact level measurement for hydrocarbons, chemicals, bitumen, and other liquid cargoes.
At Swift Marine Tech Services Pte Ltd, we specialize in the supply, installation, commissioning, calibration, troubleshooting, maintenance, repair, retrofit, inspection, and worldwide technical support for Honeywell marine tank gauging systems. Our experienced marine automation engineers ensure your vessel’s cargo monitoring system operates with maximum accuracy, reliability, and compliance.
Advanced Marine Radar Level Measurement Technology
The Honeywell EM540 uses an innovative planar antenna design with electronically shaped radar beams, removing the need for traditional horn or lens antennas. This advanced approach delivers stable, accurate, and dependable level measurement while helping to reduce maintenance needs and improve long-term operational reliability.
The EM540 works by transmitting a continuous frequency-modulated radar signal toward the liquid surface inside the tank. The reflected signal is then received by the antenna and processed by the gauge electronics to calculate the exact distance to the product surface. This non-contact measurement method ensures high accuracy even in demanding marine environments, where vapors, pressure changes, temperature variations, and tank movement can affect conventional level measurement devices.
The radar gauge continuously measures:
- Cargo tank level

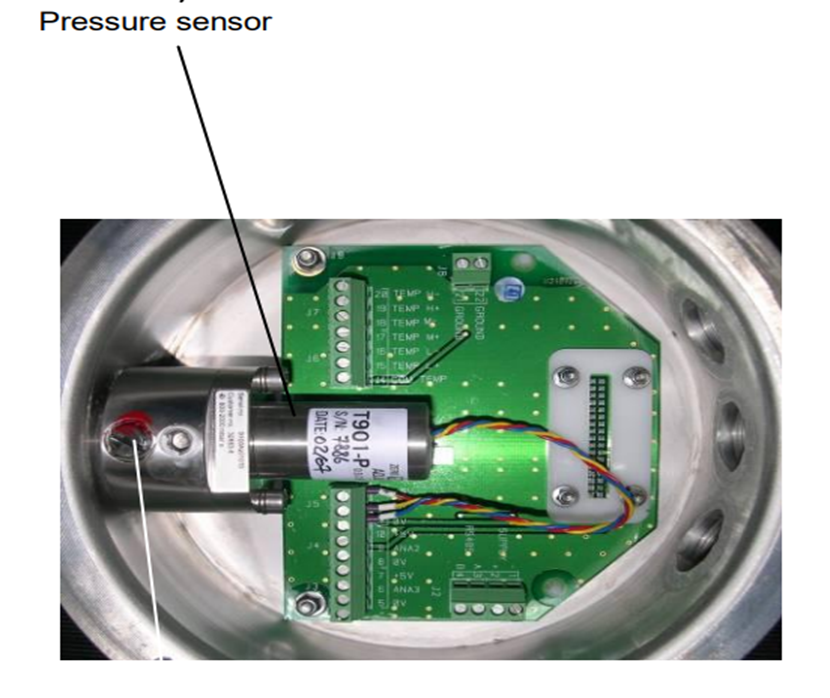

- Tank pressure
- Temperature inputs
- System diagnostics
- Sensor health monitoring
All measurement data is transmitted securely to the vessel’s centralized cargo monitoring system through intrinsically safe digital communication, ensuring reliable integration with onboard automation and tank gauging systems.
Key Features of Honeywell EM540
- High-precision FMCW 10GHz radar technology
Delivers accurate and stable level measurement with excellent performance in demanding marine tank applications. - Non-contact free-space level measurement
Measures liquid level without touching the product, reducing wear, contamination, and maintenance needs. - Smart sensor with automatic self-diagnostics
Continuously monitors system health and helps detect faults early for improved reliability. - Automatic radar self-test during startup
Performs an internal check at power-up to confirm proper operation before measurement begins. - Automatic antenna fouling detection
Identifies buildup or contamination on the antenna to maintain measurement accuracy. - Remote configuration capability
Allows setup and adjustment from a distance, making commissioning and service more convenient. - Intrinsically safe digital communication
Ensures safe data transmission in hazardous areas where flammable vapors may be present. - Marine-approved construction for hazardous areas
Built to meet marine and hazardous location requirements for safe onboard installation. - Stainless Steel SS316L housing
Provides strong corrosion resistance and long service life in harsh marine environments. - IP66/IP67 environmental protection
Offers excellent protection against dust, water ingress, and tough weather conditions. - Suitable for hydrocarbons, chemicals, bitumen, and other liquid cargoes
Designed for a wide range of marine cargo applications, making it highly versatile.
Marine Applications
The Honeywell EM540 Radar Type Level Gauge is engineered for dependable performance in demanding marine and industrial environments where accurate tank level measurement is critical for safe and efficient operations. Its non-contact radar technology makes it especially suitable for hazardous cargoes and challenging onboard conditions.
The Honeywell EM540 is widely used on:
- Crude Oil Tankers
- Product Tankers
- Chemical Tankers
- LNG Support Vessels
- Offshore Platforms
- FPSOs
- Marine Storage Tanks
- Industrial Chemical Storage Facilities
Its robust design, high measurement accuracy, and suitability for hazardous marine environments make it an ideal choice for reliable cargo and storage tank level monitoring across a wide range of marine and industrial applications.
Key Benefits of Honeywell EM540
- Improved cargo measurement accuracy
Provides highly precise level readings that help reduce measurement errors and support better cargo control and inventory management. - Reduced maintenance and downtime
Non-contact radar measurement and smart diagnostics minimize wear, lower servicing needs, and help keep vessel operations running smoothly. - Enhanced safety in hazardous areas
Intrinsically safe communication and marine-approved construction support safe operation in flammable and demanding marine environments. - Reliable performance in harsh marine conditions
Stainless steel SS316L housing and IP66/IP67 protection ensure dependable operation against corrosion, moisture, dust, and weather exposure. - Easy integration and service support
Remote configuration, self-test functions, and compatibility with marine cargo monitoring systems make installation, commissioning, and maintenance more efficient.
International Compliance and Certifications
The Honeywell EM540 is designed for installation in hazardous marine environments and complies with international marine and hazardous area certification requirements. It is certified with:
- IECEx
- ATEX
- Intrinsically Safe (Ex ia)
- Marine Classification Society compliance
These international certifications make the EM540 suitable for use in cargo tanks carrying flammable and hazardous liquids, while supporting safe and reliable operation in demanding marine applications.
Technical Specifications
| Specification | Value |
|---|---|
| Radar Frequency | 10GHz FMCW |
| Beam Angle | 13° |
| Measuring Range | 600 mm to 42,000 mm |
| Resolution | 1 mm |
| Instrument Accuracy | ±3 mm |
| Operating Accuracy | ±5 mm |
| Operating Temperature | -40°C to +70°C |
| Product Temperature | Up to +250°C (special mounting) |
| Storage Temperature | -40°C to +85°C |
| Maximum Pressure | 1 bar |
| Housing Material | Stainless Steel SS316L |
| Protection Rating | IP66/IP67 |
| Communication Protocol | EMS |
| Process Connection | PN16 DN200 |
Precision Marine Radar Level Measurement Technology
Swift Marine Tech Services Pte Ltd Services
We provide complete lifecycle support for Honeywell EM540 Radar Level Gauges, including:

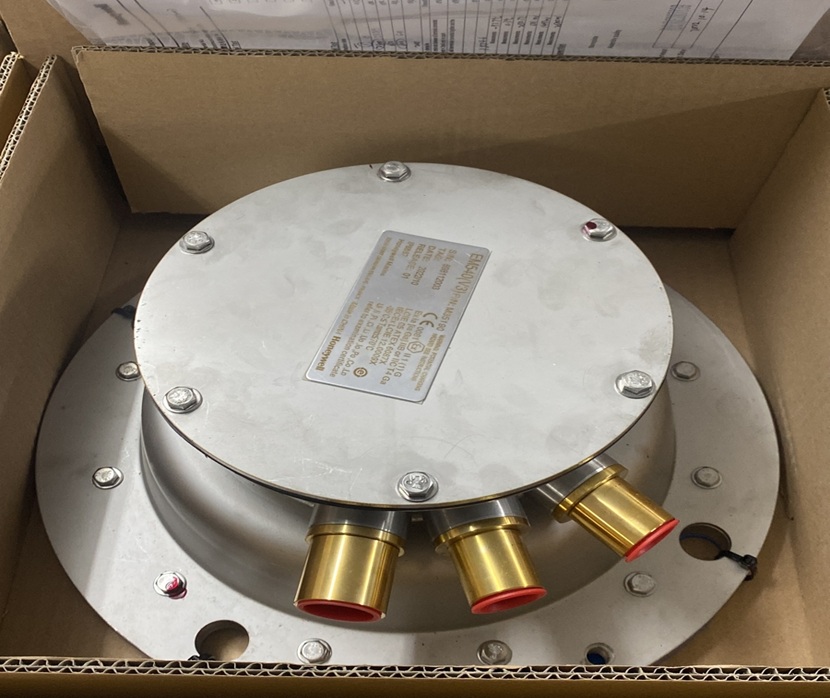

- Supply of genuine Honeywell EM540 Radar Gauges
- Marine system installation
- Commissioning & startup assistance
- Radar calibration
- Cargo tank level verification
- Preventive maintenance
- Fault diagnosis & troubleshooting
- Spare parts supply
- System upgrades & retrofits
- Annual inspection
- Emergency onboard service
- Worldwide marine field service
Our engineers have extensive experience with marine cargo monitoring systems, ensuring minimal vessel downtime and maximum operational efficiency.
Why Choose Swift Marine Tech Services Pte Ltd?
Swift Marine Tech Services Pte Ltd is a trusted partner for marine automation and Honeywell tank gauging solutions. We provide dependable support to keep your systems accurate, safe, and efficient.
- Skilled marine engineers
- Genuine Honeywell parts
- Fast global support
- Calibration services
- Preventive maintenance
- Competitive pricing
- Offshore and shipboard expertise
- Reliable after-sales support
- Marine standard compliance
With our experience and commitment to quality, we help ensure smooth vessel operations and long-term system reliability.
Contact Swift Marine Tech Services Pte Ltd
For Honeywell EM540 Radar Level Gauge supply, calibration, repair, maintenance, installation, troubleshooting, retrofit services, or technical support, contact Swift Marine Tech Services Pte Ltd today. We deliver reliable marine automation solutions that enhance cargo measurement accuracy, operational safety, and regulatory compliance worldwide.
