Schaller VISATRON Oil Mist Detector
Swift Marine Tech Services Pte Ltd provides professional Schaller VISATRON Oil Mist Detection System supply, technical support, troubleshooting, calibration, maintenance, inspection, spare parts, replacement equipment, and retrofit services for marine, offshore, shipping, tanker, power generation, and industrial engine applications.
The Schaller VISATRON Oil Mist Detector (OMD) is designed to continuously monitor oil mist conditions inside the crankcase of large diesel, gas, and dual-fuel engines. By providing early detection of abnormal oil mist formation, the system supports marine engine safety, crankcase monitoring, preventive maintenance, and reliable vessel operation.
Schaller Visatron Oil Mist Detector – Reliable Crankcase Monitoring
What is a Schaller VISATRON Oil Mist Detection System?
The Schaller VISATRON Oil Mist Detection System is a specialized crankcase oil mist detection system used to monitor large marine and industrial engines. Oil mist can develop inside an engine crankcase due to conditions such as excessive friction, bearing overheating, lubrication problems, or mechanical component damage.
The VISATRON system continuously monitors the crankcase atmosphere and detects changes in oil mist concentration. When an abnormal condition is detected, the system provides an alarm to alert engine-room personnel so that the condition can be investigated according to the vessel’s safety procedures.
A reliable marine oil mist detector is therefore an important component of engine safety and condition monitoring for large propulsion and auxiliary engines.
Schaller Visatron Oil Mist Detector Models Available
Schaller Automation has developed different Visatron Oil Mist Detection System configurations for marine and large diesel engine applications. The exact model and configuration depend on the engine type, number of cylinders, crankcase arrangement, and vessel installation requirements.

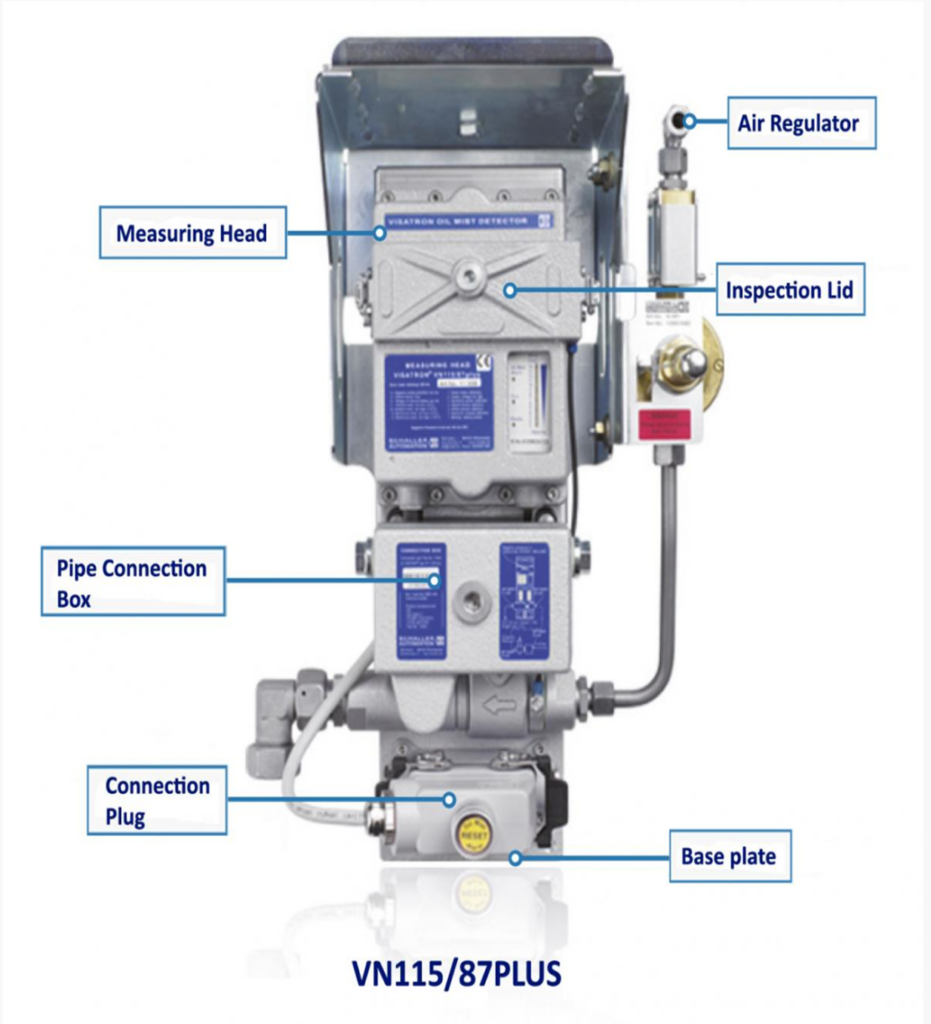

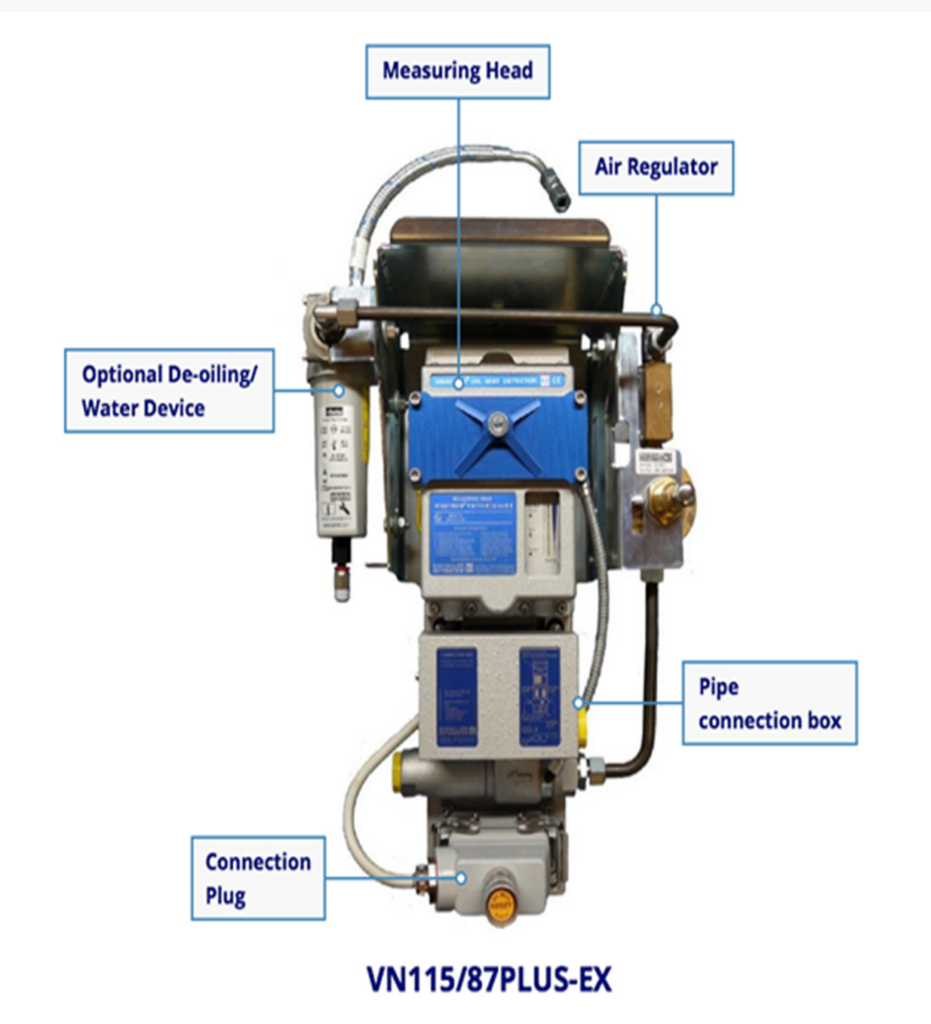

VISATRON VN115/87
A VISATRON oil mist detection system configuration used for monitoring crankcase oil mist on large diesel engines, providing continuous monitoring and alarm functions.

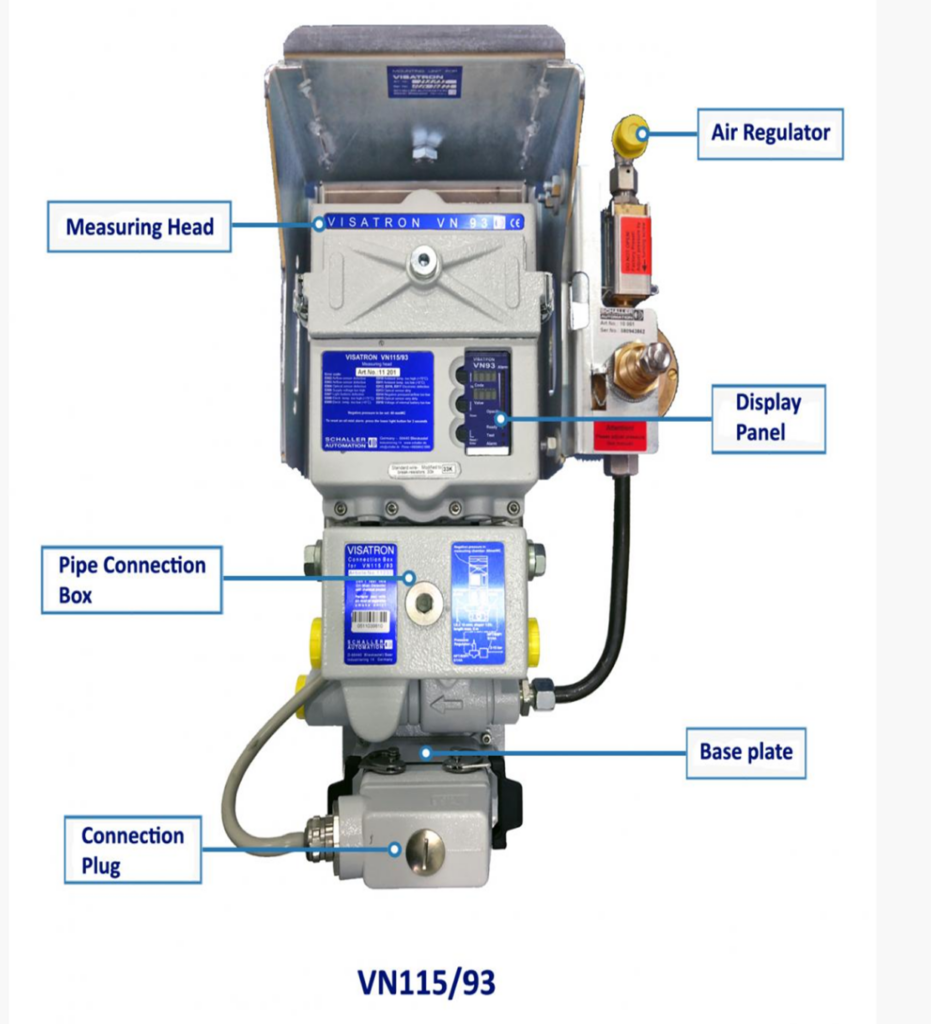

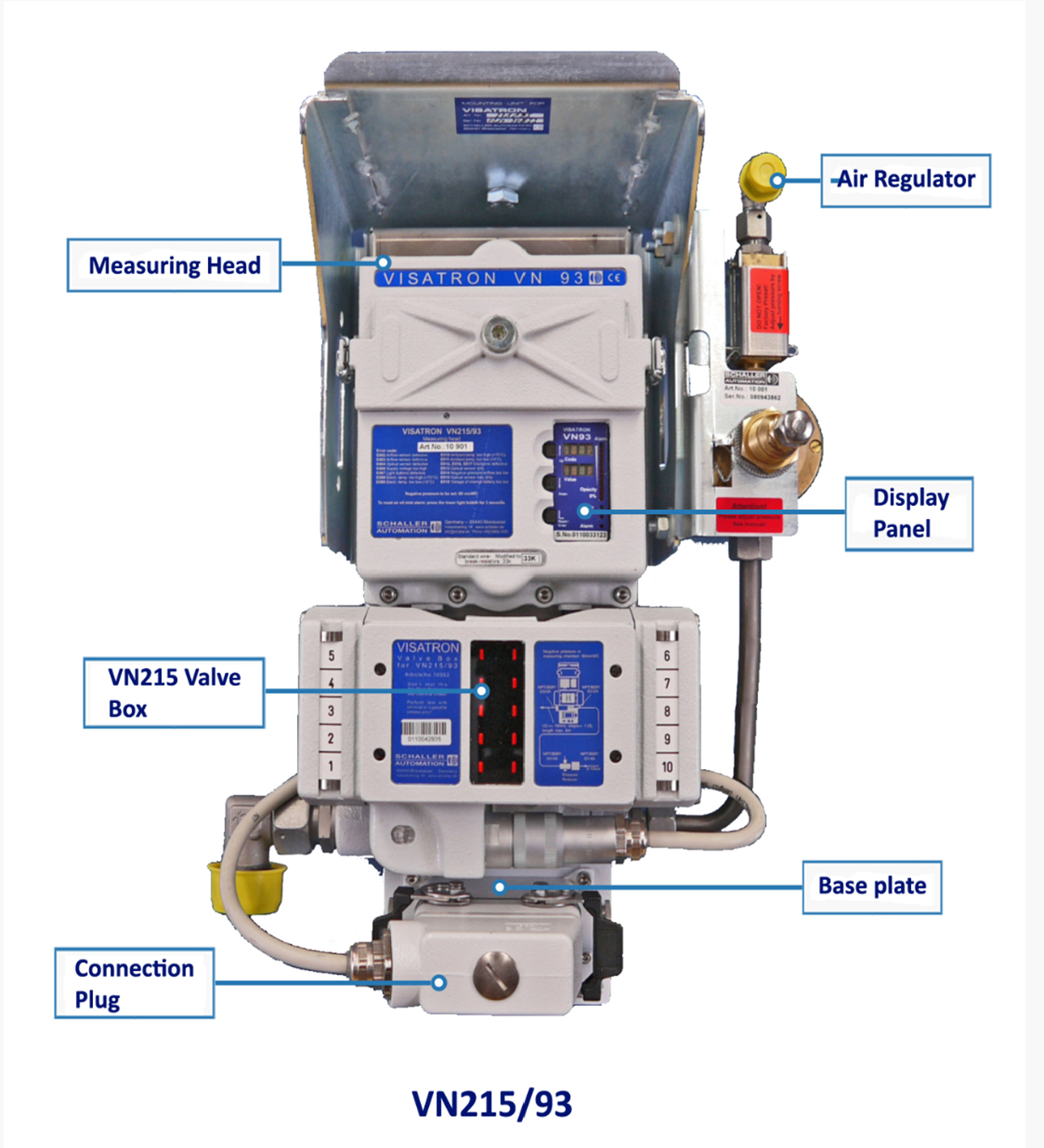

VISATRON VN93
A compact oil mist monitoring solution designed for suitable marine and stationary engine applications requiring reliable crankcase protection.
VISATRON VN2020 EX
An advanced Schaller Visatron oil mist detector system designed for modern large diesel engines, offering multi-point monitoring, optical detection, alarm functions, and enhanced system diagnostics.

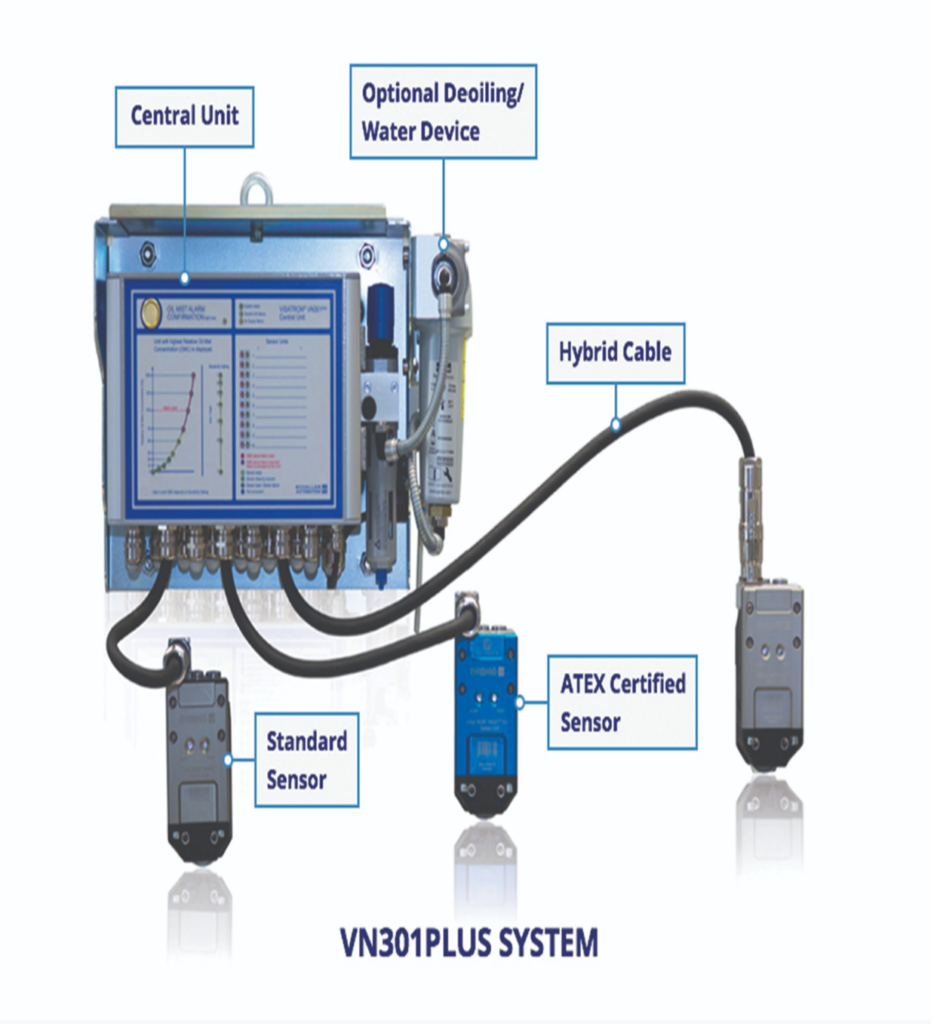

VISATRON VN301plus
A modern Visatron oil mist detection solution designed for continuous monitoring of large diesel engines and demanding marine engine-room applications.
VISATRON Systems – Engine-Specific Configurations
Visatron systems may be supplied in different configurations depending on the engine manufacturer, number of cylinders, sampling points, detector arrangement, control unit, and vessel requirements.
Technical Specifications – Schaller Visatron Oil Mist Detection Systems
| Specification | Technical Details |
|---|---|
| Manufacturer | Schaller Automation |
| Product Type | Marine Oil Mist Detector (OMD) |
| Product Family | VISATRON® Oil Mist Detection Systems |
| Models | VN2020 / VN2020 EX, VN301plus / VN301plus EX |
| Application | Large diesel, gas and dual-fuel engines |
| Detection Principle | Optical oil mist measurement |
| Sampling Method | Continuous crankcase atmosphere extraction |
| Monitoring | Continuous oil mist concentration monitoring |
| Sensor Configuration | Up to 20 sensors with VN301plus system configurations |
| Communication | CANopen / Modbus RTU depending on system configuration |
| Power Supply | Typically 24 V DC; model-specific range applies |
| Alarm Functions | Oil Mist Alarm, Pre-Alarm and system status functions |
| Display / Indication | LED/display-based operating and alarm indication |
| Protection Rating | IP65 for applicable VN301plus components |
| Operating Temperature | Approximately +5°C to +70°C for applicable VN301plus components |
| EX Versions | VN2020 EX / VN301plus EX available |
| Certification | ATEX / IECEx available on applicable EX versions |
| Classification | Certified by major marine classification societies |
| Marine Standards | Designed in accordance with applicable IACS/SOLAS requirements |
| Typical Applications | Main engines, auxiliary engines, marine power plants and industrial engines |
Advanced Oil Mist Detection Technology
The Schaller Automation VISATRON Oil Mist Detection System is engineered for continuous monitoring of oil mist inside the crankcase of large marine diesel, gas, and dual-fuel engines. Its optical detection technology identifies changes in oil mist concentration and provides early warning of abnormal engine conditions.
The system continuously draws crankcase atmosphere through dedicated sampling points to the monitoring unit. This enables rapid detection of localized oil mist formation and gives engine-room personnel valuable warning information for investigating potential mechanical or thermal problems.
Multi-Point Crankcase Monitoring & Fast Response
Schaller VISATRON systems are designed for multi-point oil mist monitoring, allowing different crankcase compartments or sampling locations to be monitored through a centralized detection arrangement. Depending on the model and configuration, the system can accommodate multiple sensors and sampling points for comprehensive engine coverage.
The VISATRON VN2020 and VN301plus product families provide modern monitoring and communication capabilities, while available EX versions are intended for applicable hazardous-area requirements. Alarm and status indications help engineers identify abnormal oil mist conditions and system faults quickly.
Marine Engine Safety, Diagnostics & System Integration
A Schaller VISATRON Oil Mist Detector provides an important layer of protection for large propulsion and auxiliary engines. By detecting abnormal oil mist conditions at an early stage, the system supports timely investigation of potential issues such as bearing overheating, excessive friction, lubrication problems, or component damage.
Modern VISATRON systems can also provide diagnostic information and communication interfaces for integration with vessel monitoring and automation systems, depending on the specific model. Features such as system diagnostics, alarm monitoring, communication interfaces, and remote indication can simplify maintenance and improve visibility of engine safety conditions.
Key Features of Schaller Visatron Oil Mist Detection Systems
Continuous Oil Mist Monitoring
Continuously monitors oil mist concentration inside the engine crankcase for reliable real-time engine safety protection.
Multi-Point Crankcase Monitoring
Monitors multiple crankcase sampling points to provide comprehensive coverage across large marine diesel engines.
Advanced Optical Detection
Uses optical oil mist detection technology to identify abnormal oil mist conditions quickly and reliably.
Fast Alarm Response
Provides rapid alarm indication when oil mist concentration reaches the configured warning or alarm level.
Reliable Engine Protection
Designed to provide early warning of potentially dangerous crankcase conditions and support safer engine operation.
Easy Monitoring & Diagnostics
Clear system indications and diagnostic functions help engineers identify alarms, faults, and maintenance requirements.
Marine-Grade Design
Built for continuous operation in demanding marine engine-room environments and vessel applications.
Key Benefits of Schaller Visatron Oil Mist Detection Systems
Enhanced Engine Safety
Provides early warning of abnormal oil mist formation, helping engineering crews respond before conditions become more serious.
Crankcase Explosion Risk Reduction
Continuous oil mist monitoring supports preventive action against conditions that can contribute to crankcase explosions.
Early Fault Detection
Helps identify potential problems associated with bearing overheating, excessive friction, lubrication issues, or mechanical wear.
Reduced Engine Downtime
Early detection can allow maintenance teams to investigate developing problems before they result in major engine failure.
Improved Maintenance Planning
Oil mist monitoring provides useful warning information that can support condition-based inspection and preventive maintenance.
Reliable Marine Operation
Provides continuous monitoring for critical marine diesel engines operating under demanding vessel conditions.
Regulatory & Class Support
Supports vessel operators in maintaining required engine safety monitoring arrangements in accordance with applicable marine and classification requirements.
Schaller Automation Visatron – Precision Oil Mist Detection for Diesel Engines
Schaller VISATRON OMD Troubleshooting
Swift Marine Tech Services provides technical assistance for Schaller VISATRON OMD troubleshooting and fault diagnosis.
Support may include investigation of:
Oil mist alarms
Sensor faults
Sampling problems
System warnings
Communication faults
Detector issues
Abnormal readings
Power supply problems
Control-unit faults
Functional testing requirements
Our technical team can assist customers in identifying potential system problems and determining suitable corrective maintenance or replacement requirements.
Schaller VISATRON Calibration & Functional Testing
Regular Schaller VISATRON calibration and functional testing are important for maintaining dependable oil mist monitoring performance.
Our technical support can include:
OMD calibration support
Functional testing
Alarm verification
Sensor inspection
System performance checks
Sampling system inspection
Diagnostic checks
Preventive maintenance
Annual inspection support
Calibration and testing should be carried out according to the applicable manufacturer’s procedures and vessel or classification requirements.
Schaller VISATRON Spare Parts & Replacement Equipment
Swift Marine Tech Services supports customers requiring Schaller VISATRON spare parts and replacement equipment.
Depending on the model and installation, requirements may include:
Oil mist detector components
Sensors
Electronic modules
Control units
Sampling components
Cables and connectors
Filters and consumables
Display and indication components
Replacement detector units
Providing the VISATRON model number, engine model, existing system details, or equipment nameplate information can help identify the appropriate replacement component or system.
Schaller VISATRON Retrofit & Upgrade Solutions
For vessels operating older oil mist detection equipment, Schaller VISATRON retrofit and upgrade solutions can provide a pathway toward modern engine monitoring technology.
Swift Marine Tech Services can support retrofit requirements involving:
Existing system assessment
Replacement system selection
Equipment supply
Installation support
Wiring and interface requirements
Commissioning
Functional testing
System integration
Technical documentation
Retrofit requirements depend on the existing engine, detector arrangement, sampling system, and vessel installation.
Schaller VISATRON Marine OMD Technical Services
Swift Marine Tech Services Pte Ltd provides comprehensive technical support for Schaller VISATRON Oil Mist Detection Systems.
Our services are designed to support ship owners, ship managers, shipyards, offshore operators, marine service companies, and industrial customers requiring reliable oil mist detection and engine safety solutions.
Contact Swift Marine Tech Services Pte Ltd
For Schaller VISATRON Oil Mist Detector supply, troubleshooting, calibration, spare parts, maintenance, retrofit, replacement equipment, and technical support, contact Swift Marine Tech Services Pte Ltd.
Supply • Technical Support • Inspection • Calibration Support • Maintenance • Troubleshooting • Spare Parts • Replacement Equipment • Retrofit • Functional Testing • Commissioning Support
