Description

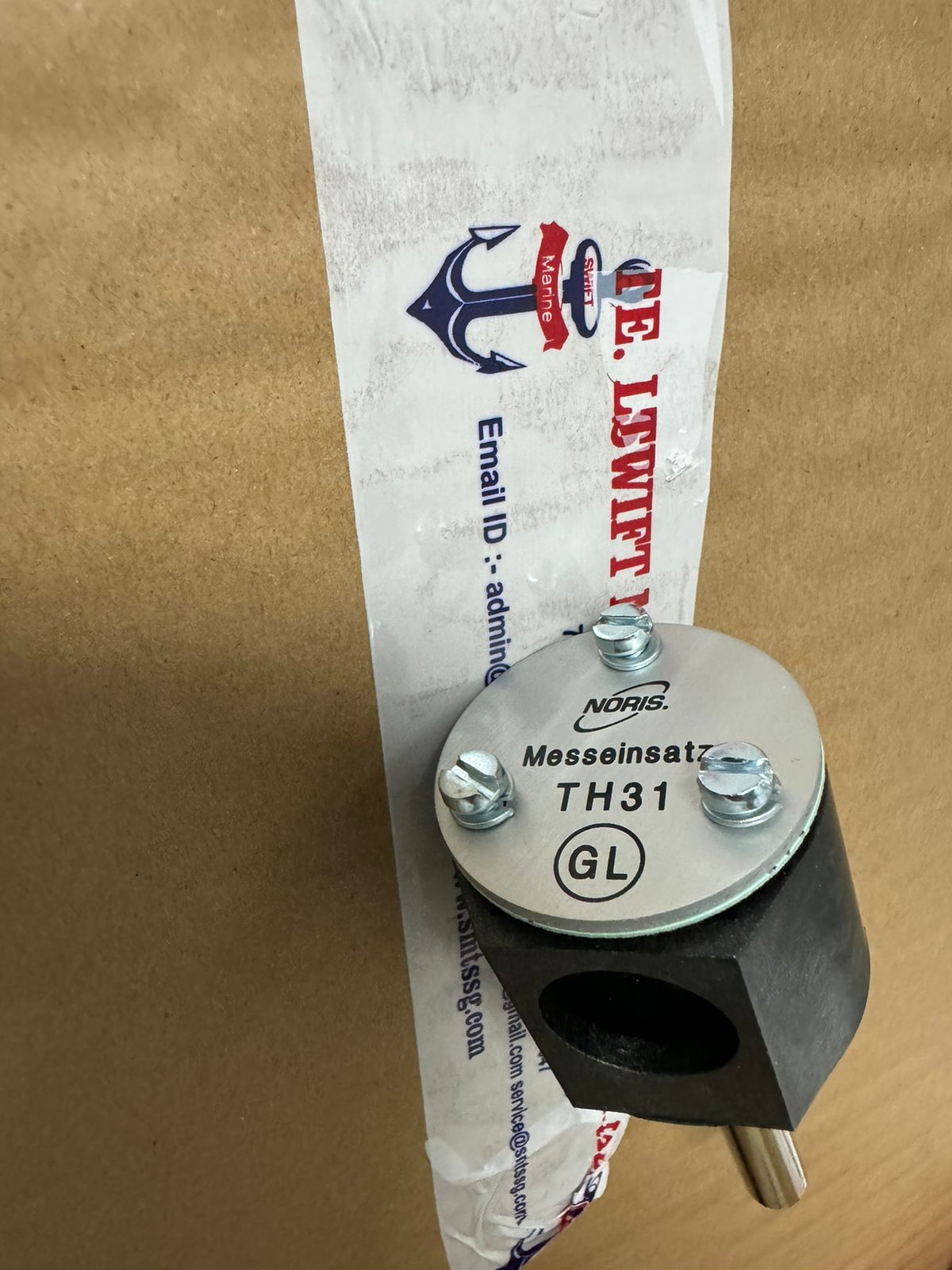

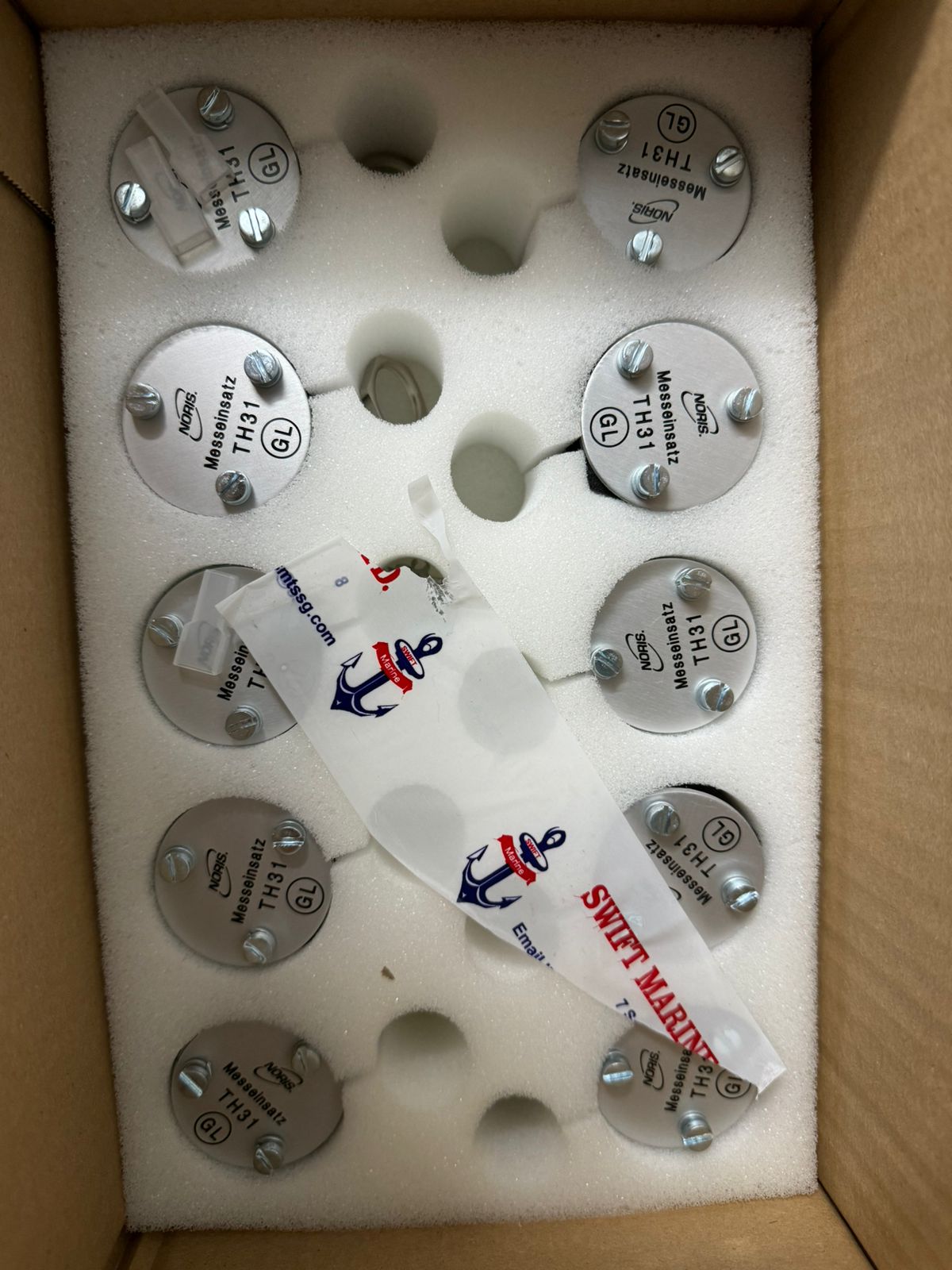

Temperature sensors of type TP31 are stick-in sensors with a Pt100 measuring element, temperature sensors of type TH31 or TH32 are NTC thermistors. They have a lateral cable outlet and are fitted in protection tubes.
- Compact and robust construction
- Ideal for shipbuilding industry, thanks to their construction and approvals
- Simple assembly with protection tube
- Connection using tab connector, lateral cable outlet
- Pressure resistance up to 40 bar
- Available in various immersion depths
- Compatible measuring transducers, limit value switches and analogue indicators available
- Design available with a Pt100 or an NTC thermistor measuring element
| Measuring principle | TP31: Pt100 |
| TH31: NTC thermistor | |
| TH32: NTC thermistor | |
| Measuring range | TP31: 0 … 120°C |
| TH31: 0 … 120°C | |
| TH32: 0 … 70°C | |
| Degree of protection | IP54; used with protection tube on measuring point, IP68 |
| Material | Sensor tube: Stainless steel |
| Housing: Plastic | |
| Connection | DIN 46244 tab connector / A6.3 x 0.8 |
| Immersion depth | Immersion depth 56 mm, 100 mm (other lengths available on request) |
