Description

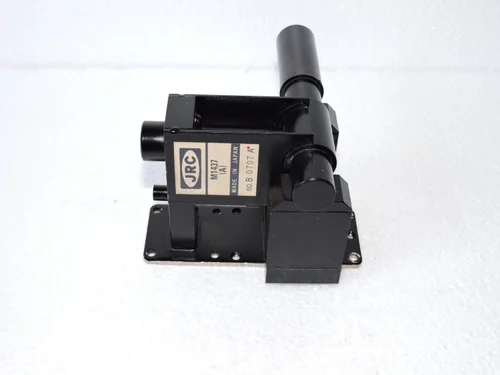

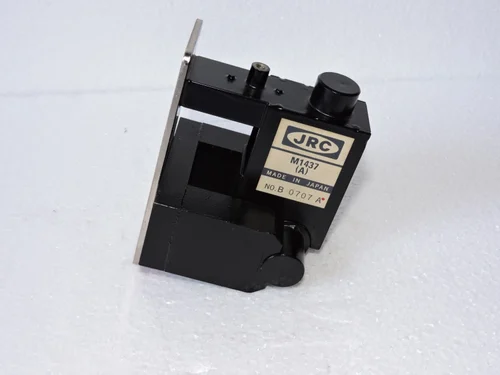

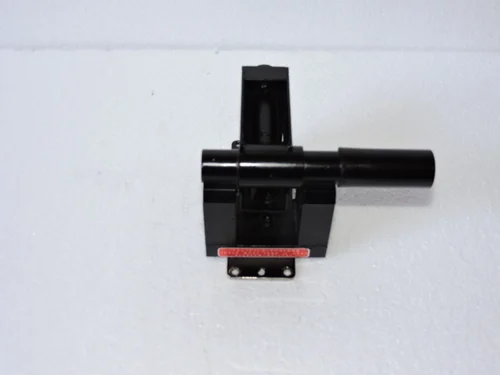

Magnetron M1437 (A) is designed to work in the X-band frequencies from 9380 to 9440 MHz with a peak power output of 25 kW.
Magnetron M1437 (A) can be air-cooled or air-cooled naturally. As the fuse is recommended to use TL393 or TL368A.
The magnetrons are subject to mandatory testing for compliance with quality standards. The product quality is constantly monitored by the manufacturer.
Specifications:
- Frequency Range: 9380-9440 MHz
- Maximum output power – 25 kW
- Pulse duration – 1 ms
- Duty Cycle – 0,001
- Anode voltage – 8 kV
- Maximum anode current – 8 A
- Heater Voltage – 6.3
- Heater Current – 0.52 A
- Weight – 1.5 kg
