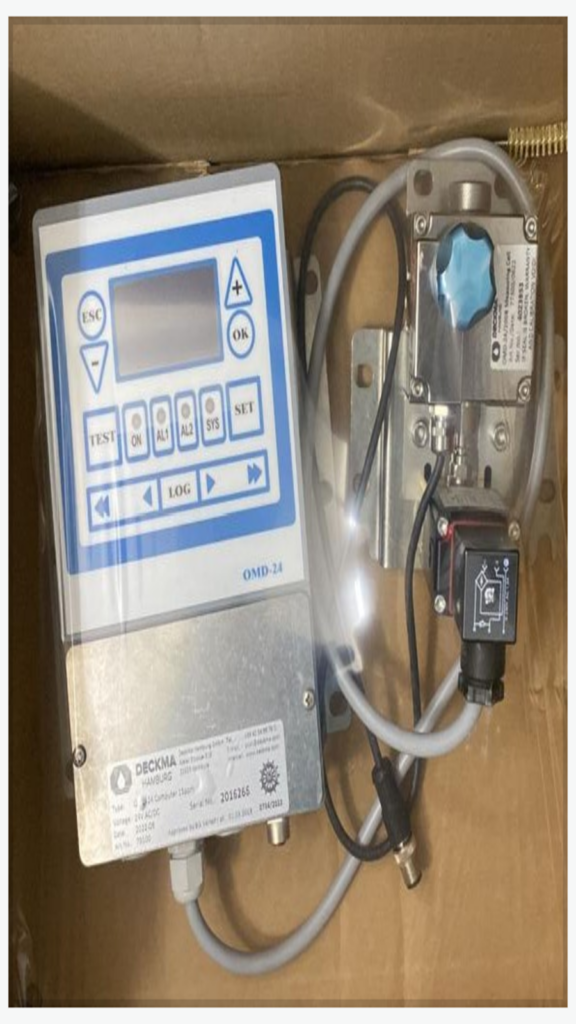

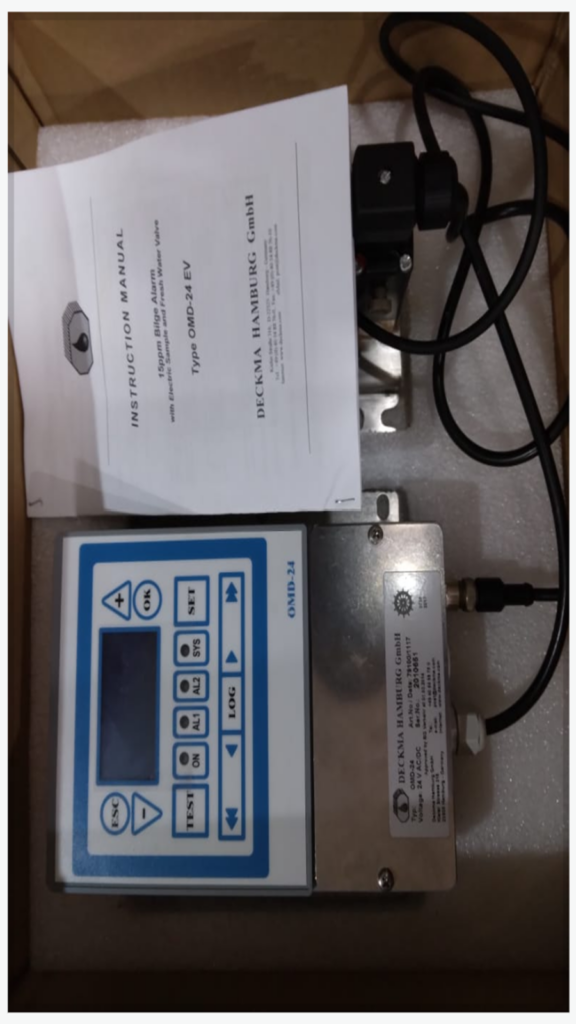

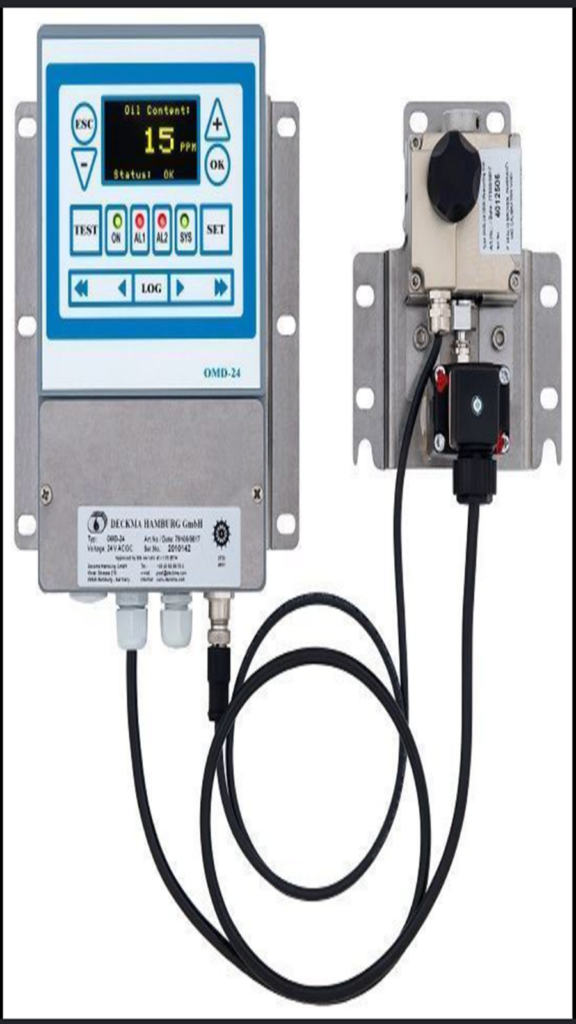

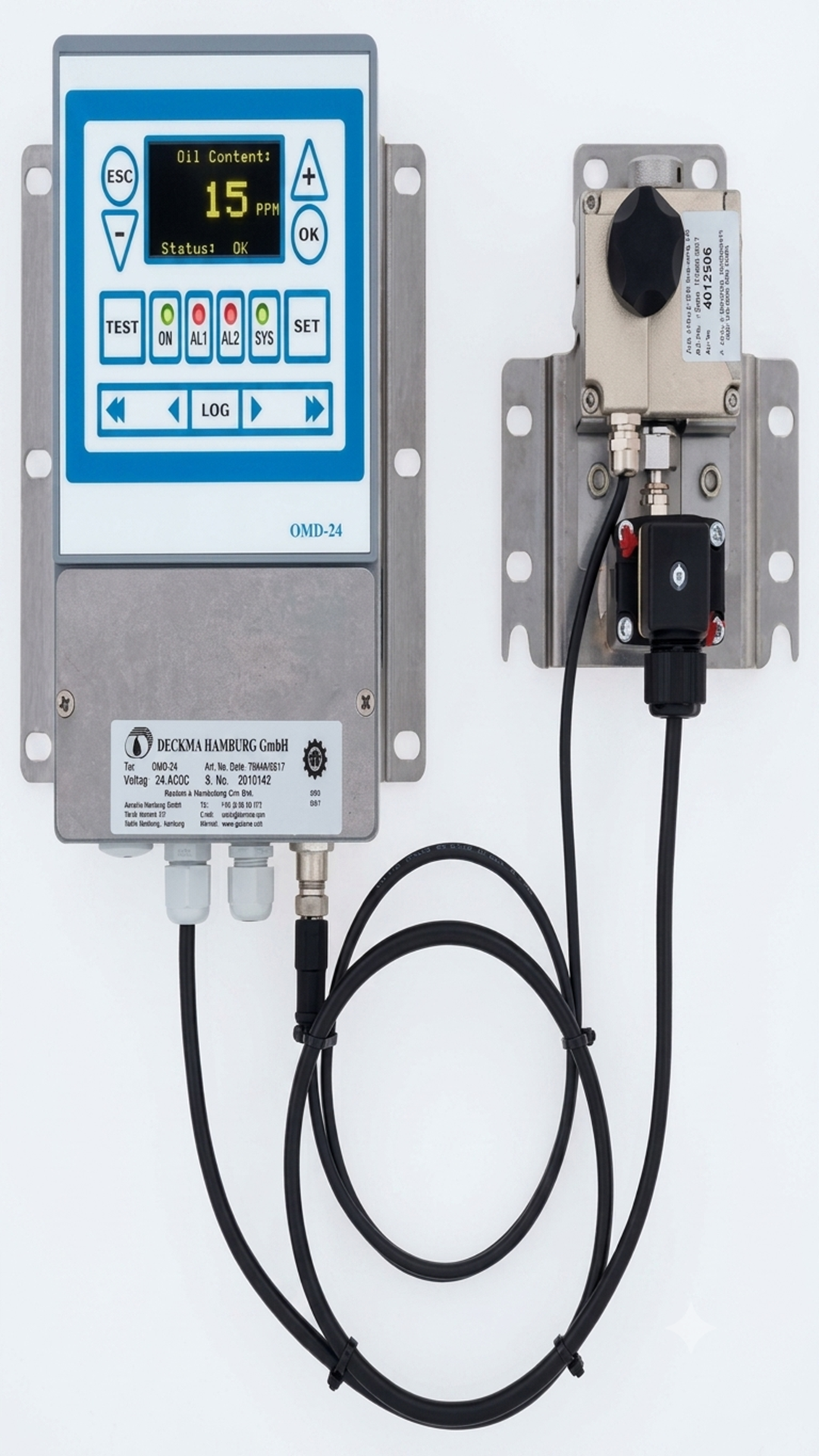

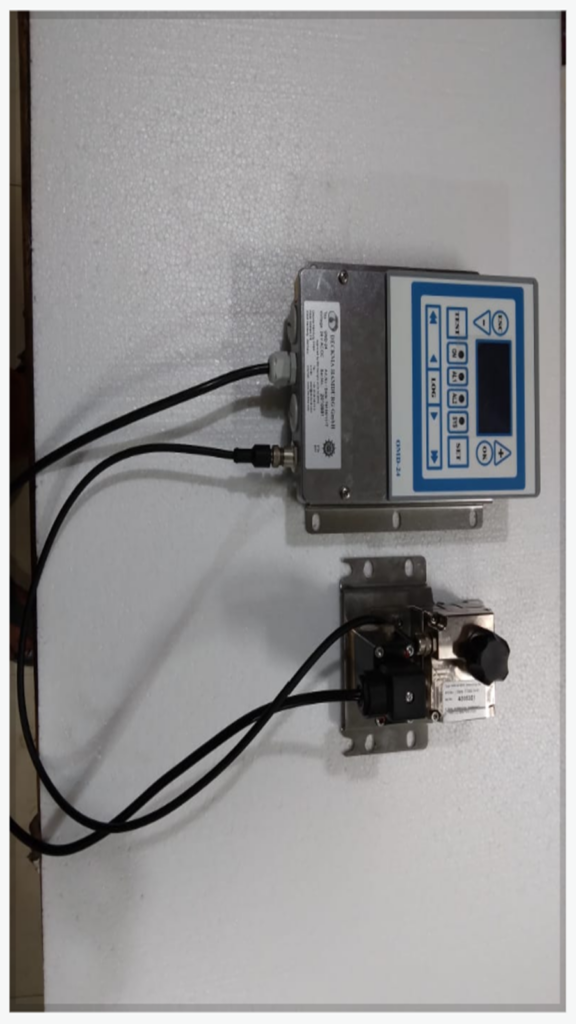

DECKMA OMD-24 15 PPM Bilge Alarm
Effective bilge water management is essential for maintaining marine environmental compliance and preventing the discharge of excessive oil content into the sea. The OMD-24 Series Bilge Alarm Unit is designed specifically for integration with 15 ppm oily water separator systems, providing accurate oil-content monitoring and reliable alarm protection for shipboard applications.
Engineered to meet and exceed the requirements of IMO Resolution MEPC.107(49), the OMD-24 combines accurate measurement, adjustable alarm settings, malfunction indication, and optional data logging capabilities in a compact marine-grade system.
Swift Marine Tech Services Pte Ltd provides professional marine equipment solutions and technical support for bilge alarm systems, oily water separators, marine monitoring equipment, calibration, troubleshooting, and maintenance.
Smarter Bilge Protection. Accurate 15 PPM Detection. Safer Vessel Operations.
Why OMD-24 Is a Smart Choice for Bilge Water Monitoring?
The OMD-24 Bilge Alarm continuously monitors the oil concentration of water discharged from an oily water separator. If the measured oil content reaches the configured alarm threshold, the system provides a visible alarm and activates the corresponding relay outputs.
With a measurement range of 0–30 ppm and an IMO monitoring range of 0–15 ppm, the OMD-24 offers dependable monitoring for vessels where accurate oil-content detection and environmental protection are critical.
Key Features of the OMD-24 Bilge Alarm
Adjustable 15 PPM Alarm Settings
The OMD-24 is supplied with two factory-adjusted 15 ppm alarms. Alarm thresholds can be adjusted between 1 ppm and 15 ppm, allowing the system to be configured according to operational requirements.
High-Accuracy Oil Content Monitoring
The system is designed to provide measurement performance exceeding the requirements of IMO MEPC.107(49), supporting reliable monitoring of oily water separator discharge.
Fast Alarm Response
The OMD-24 provides rapid alarm response to help operators identify excessive oil concentration and take corrective action quickly.
Dual Independent Alarm Relays
Two independently adjustable alarm contacts provide flexible control and alarm functionality for shipboard oily water separator systems.
Built-In Malfunction Indication
The front-panel SYS LED provides an immediate indication of system status. A change from normal green indication to solid red alerts operators to a malfunction.
Optional 0/4–20 mA Output
An optional analog output enables connection to external recorders, meters, and vessel monitoring or automation systems.
IP65 Marine Protection
The IP65 enclosure provides protection against dust and water ingress, making the OMD-24 suitable for demanding marine and engine-room environments.
OMD-24 Technical Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | 0–30 ppm |
| IMO Measurement Range | 0–15 ppm |
| Accuracy | Better than IMO MEPC.107(49) |
| Power Supply | 24V AC/DC ±10% |
| Power Consumption | <5 VA |
| Sample Flow | 0.1–4 L/min |
| Sample Temperature | +1°C to +65°C |
| Alarm Set Points | 1–15 ppm |
| Factory Alarm Setting | 15 ppm |
| Alarm Contacts | 2 Independent Changeover Contacts |
| Analog Output | 0/4–20 mA |
| Display | Graphic Display |
| Protection | IP65 |
| Ambient Temperature | +1°C to +55°C |
Key Benefits of the OMD-24 Bilge Alarm Unit
Enhanced Environmental Protection – Continuously monitors oil concentration in bilge water to help prevent excessive oil discharge into the marine environment.
IMO Compliance Support – Designed to meet and exceed the requirements of IMO MEPC.107(49) for 15 ppm bilge alarm systems.
Accurate Oil Content Monitoring – Provides reliable measurement across a 0–30 ppm range, supporting precise monitoring of oily water separator discharge.
Fast Alarm Response – Quickly alerts operators when the configured oil concentration limit is exceeded, enabling prompt corrective action.
Flexible Alarm Configuration – Alarm set points can be adjusted from 1–15 ppm, allowing the system to suit different operational requirements.
Reliable Fault Detection – Built-in system status indication helps engineers identify malfunctions quickly and reduce troubleshooting time.
- Reduced Operational Risk – Dual independent alarm relays provide dependable alarm and control functionality for oily water separator systems.
- Simplified Maintenance – Compact design and accessible components make inspection, cleaning, servicing, and calibration more convenient.
Improved OWS Performance Monitoring – Helps operators verify the effectiveness of the 15 ppm oily water separator system before discharge.
Supports Reliable Vessel Operations – Continuous monitoring helps minimize environmental risks, unexpected alarms, and potential operational disruptions.
Advanced Data Logging & Automation Support
The optional 0(4)-20 mA output allows seamless integration with:
- Ship automation systems
- External recorders
- AMS monitoring
- Engine control systems
- Remote monitoring panels
This makes the OMD-24 ideal for modern smart vessel applications.
Intelligent Alarm & Fault Protection
The system continuously self-monitors its operational status.
System LED Status:
- Blinking Green = Normal Operation
- Solid Red = System Fault or Malfunction
This instant visual indication allows engineers to react quickly and avoid operational risks.
Precise Oil Monitoring. Rapid Alarm Response. Reliable Marine Compliance.
Why Choose Swift Marine Tech Services Pte Ltd?
Swift Marine Tech Services Pte Ltd delivers dependable marine equipment solutions backed by technical knowledge and practical shipboard experience.
We support customers looking for reliable solutions for:
Marine Automation | Bilge Monitoring | Oily Water Separators | 15 PPM Bilge Alarms | Marine Instrumentation | Calibration | Troubleshooting | Maintenance
Our goal is to help vessel operators maintain reliable equipment performance, environmental compliance, and efficient marine operations.
Common OMD-24 Problems We Support
At Swift Marine Tech Services Pte Ltd, we help marine engineers quickly diagnose and solve:
✔ Measuring cell contamination
✔ Incorrect ppm readings
✔ Alarm relay failures
✔ Flow issues
✔ Optical sensor fouling
✔ Red SYS LED faults
✔ Calibration errors
✔ Data logger communication problems
Our marine technical experts provide fast troubleshooting support to minimize vessel downtime.
