CLEANTRACK 1000B
As environmental regulations continue to evolve across the maritime industry, tanker operators require reliable and compliant Oil Discharge Monitoring Equipment (ODME) to meet strict international requirements. The CLEANTRACK 1000B ODME is a fourth-generation oil discharge monitoring and control system designed for modern oil tankers, chemical tankers, and vessels carrying bio-fuel blends.
Swift Marine Tech Services Pte Ltd provides professional CLEANTRACK 1000B ODME calibration, troubleshooting, repair, commissioning, maintenance, and technical support services for tanker vessels worldwide, helping operators maintain full compliance with IMO, MARPOL Annex I, and Port State Control requirements.
Advanced Oil Discharge Monitoring Equipment
What is CLEANTRACK 1000B ODME?
The CLEANTRACK 1000B Oil Discharge Monitoring Equipment (ODME) is an advanced monitoring and control system that continuously measures the oil content in discharged ballast water and slop water during tanker operations. The system automatically monitors oil concentration levels and controls overboard discharge to ensure compliance with international environmental regulations.
When oil content exceeds allowable discharge limits, the system automatically diverts the flow back to the slop tank, preventing illegal discharges and protecting the marine environment.
The CLEANTRACK 1000B system typically consists of:

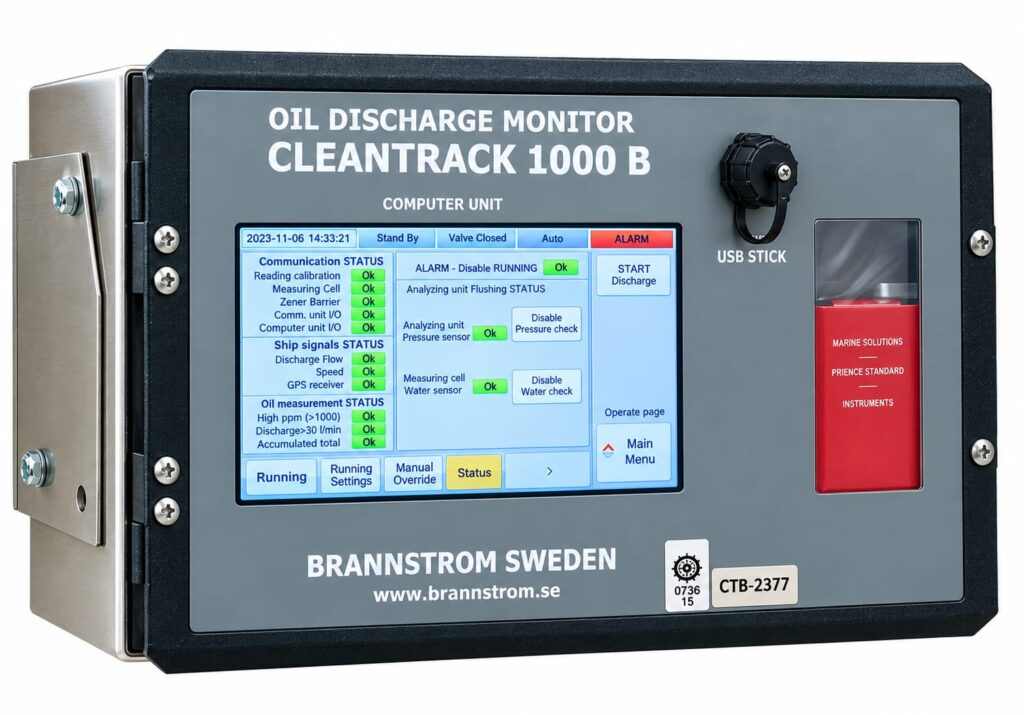

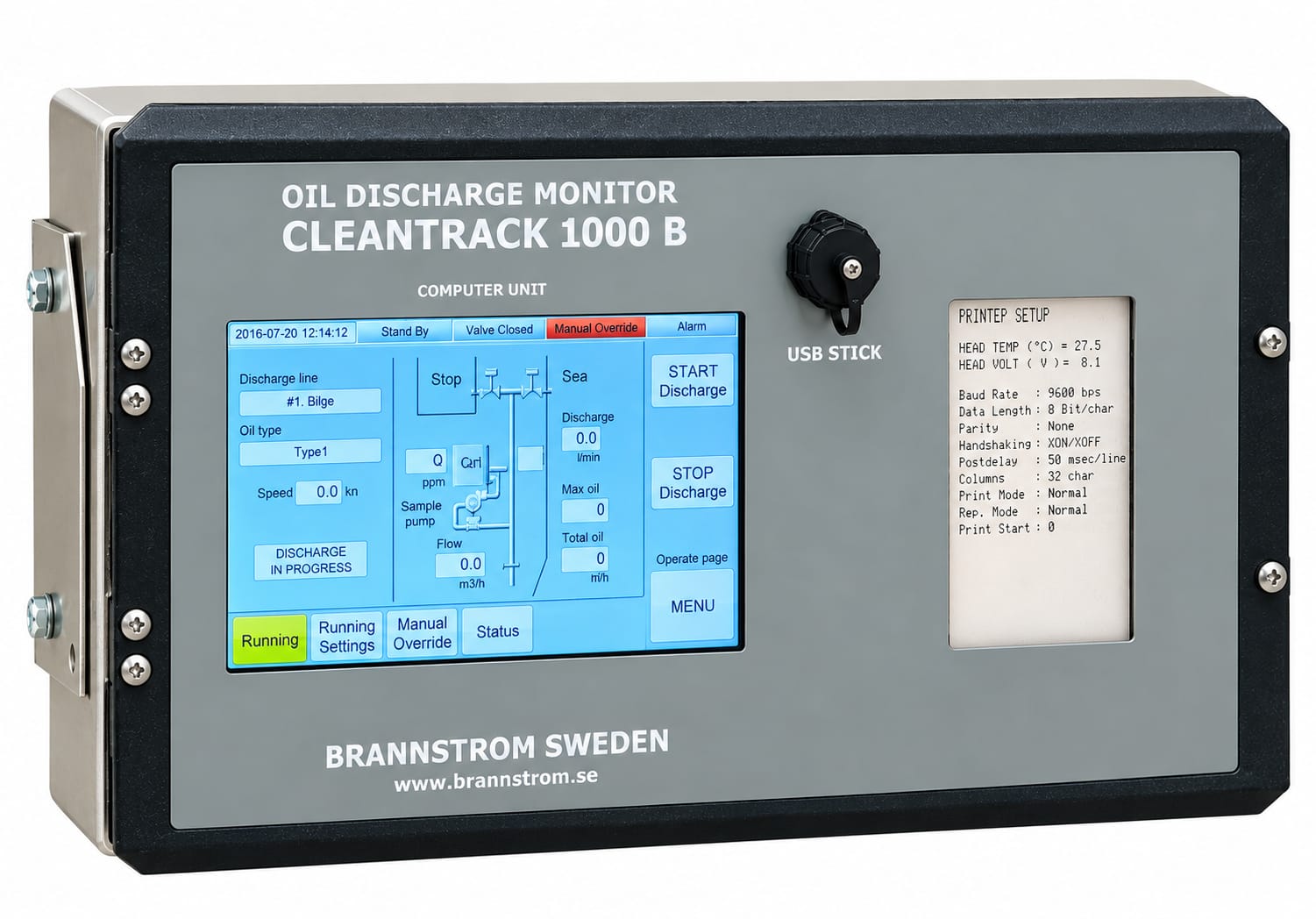

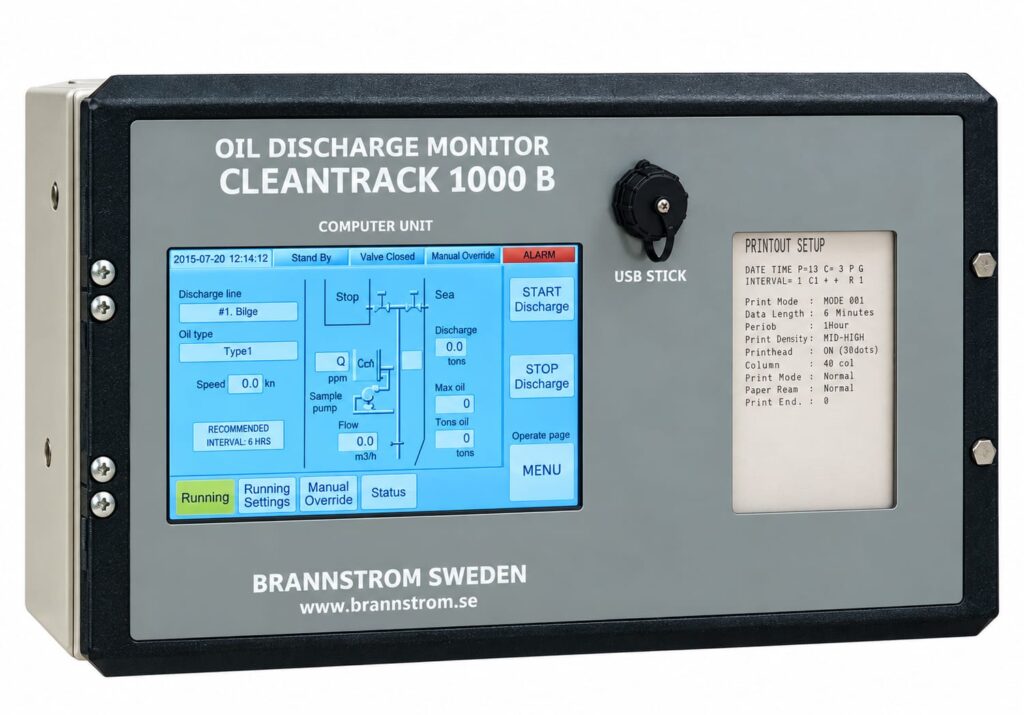

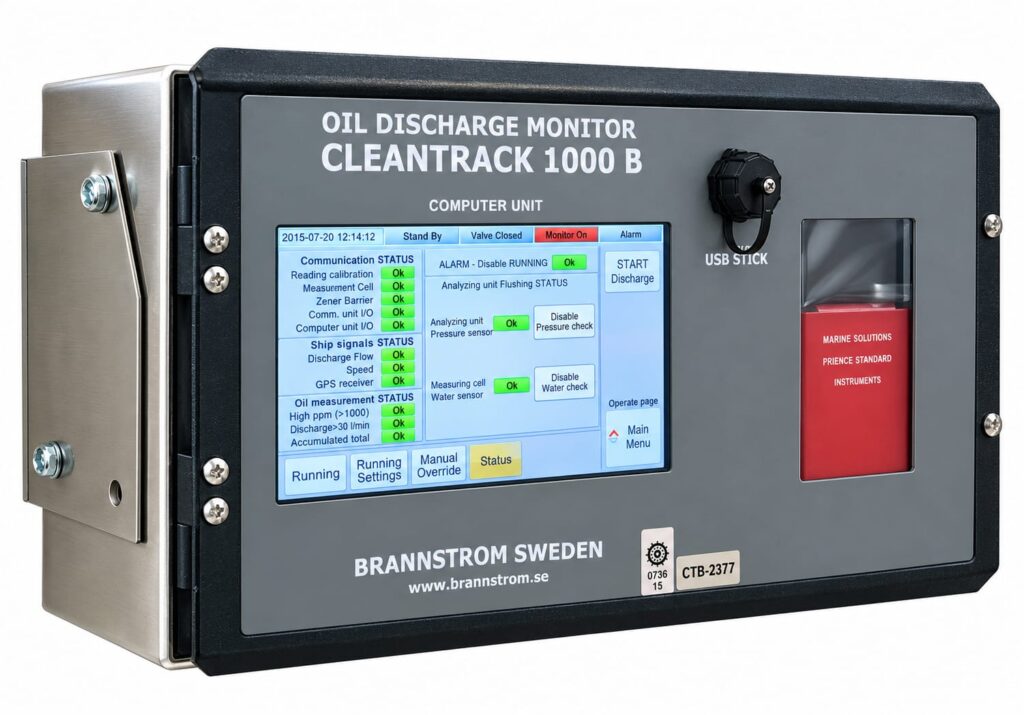

Display and Computer Unit
Oil Content Analysing Unit
Converting Unit
Measuring Cell
Sample Pump Assembly
Control Valves and Monitoring Components
The fully automated system records operational data and discharge information for inspection and compliance verification.
Key Features of CLEANTRACK 1000B ODME
Compact Installation Design
The compact architecture allows installation directly within hazardous cargo areas, reducing:
Installation costs
Piping requirements
Cable routing complexity
Bulkhead penetrations
Retrofit project downtime
This makes the system highly suitable for both newbuilding projects and tanker retrofit applications.
Smart Detachable Measuring Cell
The innovative removable measuring cell offers:
Quick onboard replacement
Simplified maintenance
Faster calibration procedures
Reduced vessel downtime
Improved service efficiency
Bio-Fuel Blend Compatibility
Modern tanker fleets increasingly transport bio-fuel cargoes. The CLEANTRACK 1000B supports bio-fuel blend monitoring and can be upgraded remotely to comply with the latest IMO requirements.
Benefits include:
Future-proof compliance
Reduced upgrade costs
Minimal operational interruptions
Enhanced monitoring accuracy
Flexible Pump Configurations
The system supports multiple installation configurations, including:
Integrated pneumatic sample pumps
ATEX-certified electric pumps
External bulkhead-mounted pump arrangements
This flexibility allows seamless integration into various tanker designs.
Advanced Data Logging & Record Management
Operational and discharge data can be accessed through:
LCD Display Interface
USB Data Export
Optional Paper Printer
Electronic Data Storage
This ensures accurate record keeping for audits, inspections, and environmental reporting.
IMO & MARPOL Approved ODME System
The CLEANTRACK 1000B is approved in accordance with international maritime regulations, including:
IMO Resolution MEPC.108(49)
IMO Resolution MEPC.240(65)
MARPOL Annex I Requirements
MEPC.1/Circ.761 Rev.1 Bio-Fuel Blend Approvals
MEPC.2/Circ.21 Additional Bio-Fuel Approvals
These approvals make the CLEANTRACK 1000B suitable for both conventional petroleum cargoes and modern bio-fuel blend operations.
CLEANTRACK 1000B ODME Technical Specifications
| Specification | Details |
|---|---|
| Measurement Range | 0 – 1000 ppm |
| Sample Flow Rate | 240 – 900 L/hr |
| Power Supply | 115/230 VAC Single Phase |
| Power Supply Options | 380/440 VAC Three Phase |
| Pneumatic Operation | Available |
| Communication | Shielded Twisted Pair Cable |
| Maximum Cable Length | Up to 120 meters |
| Hazardous Area Approval | ATEX Compliant |
| Installation Area | Hazardous Cargo Zones |
CLEANTRACK 1000B ODME Service, Calibration & Technical Support by Swift Marine Tech Services Pte Ltd
Why Choose Swift Marine Tech Services Pte Ltd?
Experienced Marine Engineers
Highly skilled engineers with extensive experience in marine automation and tanker monitoring systems.
Worldwide Technical Support
Global service capability supporting vessels at major ports, anchorages, and shipyards.
Fast Response Service
Rapid troubleshooting and repair solutions to minimize vessel downtime.
Professional Calibration Services
Accurate calibration, testing, and certification support for statutory inspections.
Complete Compliance Solutions
Supporting shipowners and operators with IMO, MARPOL, and environmental compliance requirements.
Contact Swift Marine Tech Services Pte Ltd
For professional CLEANTRACK 1000B ODME calibration, repair, troubleshooting, spare parts, upgrades, and marine compliance support, contact Swift Marine Tech Services Pte Ltd today.
Our team is ready to assist tanker operators worldwide with reliable ODME service solutions that ensure operational efficiency, environmental compliance, and uninterrupted vessel operations.
